Local LLM Inference: A Practical Handbook for Hybrid Host/Device Execution and KV Cache Offloading

Owner: Vadim Rudakov, lefthand67@gmail.com
Version: 0.7.0
Birth: 2025-11-23
Modified: 2025-11-24

INFO: The handbook is optimized for environments supporting Mermaid.js diagrams. For static export, rasterized versions are available in Appendix B.

When a user hits “enter” after typing a prompt, the system triggers a complex collaboration between the Host (Central Processing Unit, CPU) and the Device (Graphics Processing Unit, GPU). This architecture is called Hybrid Execution.

Your job as an AI Engineer is to manage the trade-offs between CPU’s vast memory capacity and GPU’s raw speed. Where should your precious data live and be processed?

📘 Glossary of Acronyms¶

0. Key Metrics for Inference: Throughput vs. Latency Metrics¶

Performance metrics are often confused, yet understanding their distinctions is critical to optimizing Local LLM inference. Let’s clarify the key terms engineers use to measure model responsiveness and speed.

Key Metrics Overview¶

Definitions and Context¶

• Latency (TTFT and TPOT) measures the delay experienced per event:

  • TTFT quantifies the delay from input prompt submission to the very first output token, heavily influenced by SSD read speeds and data transfer bottlenecks.

  • TPOT captures the time it takes to generate each additional token, driven by VRAM memory bandwidth during sequential decoding.

• Throughput (TPS) measures how many tokens your model generates per second after the initial response starts. This reflects the model’s sustained generation speed during the Decode Phase. Higher TPS indicates faster completion and better scalability.

Why This Distinction Matters¶

Optimizing local LLM inference is fundamentally a balancing act between minimizing latency and maximizing throughput:

• A low TTFT means the model starts responding quickly, which is crucial for user experience. But aggressively optimizing prompt loading (SSD/CPU) may waste GPU bandwidth later.

• A high TPS means the model can churn through tokens fast during long outputs, key for scalability and throughput. However, this often requires ample VRAM bandwidth and efficient memory management.

• Crucially: The hardware bottlenecks and computational patterns are distinct: TTFT relies on parallel computation and high I/O speed, whereas TPS relies on sequential computation and sustained VRAM bandwidth. Optimizing one does not automatically optimize the other.

Insight for Engineers: When colleagues say “optimize TPS,” they mean reducing bandwidth bottlenecks during token generation. This is often achieved by managing the KV Cache effectively or applying quantization to reduce data size.

Practical Example¶

Consider the Mistral 7B model on an 8GB VRAM GPU with 32GB RAM:

• A TTFT of 0.5 seconds means the initial prompt is processed rapidly — user sees a quick first response.

• A TPS of $\sim 20$ tokens/sec means the model generates subsequent tokens quickly, allowing smooth continuation.

However, these two goals can compete for resource allocation — optimizing for one may degrade the other, so thoughtful system tuning is necessary.

1. The Local Inference Pipeline: A Guided Scenario¶

We will follow a typical prompt journey using the scenario: running a Mistral 7B model locally with a high-end CPU, 32GB system RAM, and a consumer 8GB VRAM GPU.

1.1 Phase 1: The Prefill (Fast, Parallel Compute)¶

The model processes the entire prompt in parallel during this phase, marked by high GPU utilization and measured as Time To First Token (TTFT).

• Goal: Quickly process the input sequence to generate the first token and build the initial Key-Value Cache (KV Cache).

• Action: The CPU tokenizes text and coordinates slow PCI-E transfers of weights/data to GPU. The GPU then executes parallel matrix multiplications.

• Workflow Visualization: Note the data transfer bottleneck across $\text{PCI-E}$ and the computational dominance of the $\text{GPU}$ cores. (Refer to the detailed flow from SSD to VRAM in the Complete LLM Inference Pipeline Diagram in Section 3.)

$\dagger$ GPU compute (FLOPS) is rarely the true bottleneck. Real-world Prefill is memory-bound by VRAM bandwidth feeding data to cores. See Appendix A for more information.

1.2 Phase 2: The Decode (Sequential Memory Access)¶

Latency: Time Per Output Token (TPOT)¶

After the first token is generated, subsequent tokens are created one at a time referencing the expanding KV Cache. The loop is bandwidth-bound and measured by Time Per Output Token (TPOT).

• Goal: Efficiently generate tokens referencing the conversation’s entire history in the KV Cache.

• Action: GPU fetches weights and KV Cache repeatedly from VRAM as the cache grows linearly.

• KV Cache Growth & Offload Trigger:

Throughput: Tokens Per Second (TPS)¶

Tokens Per Second (TPS) is the standard performance metric used to measure the throughput or speed of an LLM serving engine. It is the reciprocal of TPOT, or

.

2. Memory Pressure: The KV Cache and Hybrid Execution Bottlenecks¶

2.1 The Key-Value (KV) Cache: The VRAM Killer¶

The KV Cache stores attention vectors for past tokens, significantly reducing computations but consuming high-speed Device VRAM.

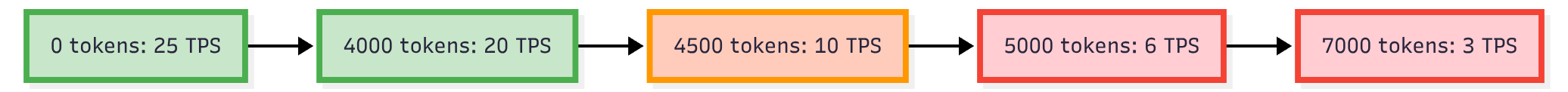

Memory Pressure Timeline:

🔥 Critical Pitfall: Exceeding 4,000 tokens on 8GB VRAM stalls or crashes inference without aggressive memory management.

2.2 Why the KV Cache Grows Linearly¶

The Key-Value (KV) Cache is a critical optimization for Transformer-based models (like Large Language Models).

The Need for Caching¶

• Without the KV Cache: When a model generates a new token (say, the 100th token), the self-attention mechanism needs to look at all previous 99 tokens to maintain context. To do this efficiently, it calculates Key (K) and Value (V) vectors for every token. Without caching, to generate the 101st token, the model would have to re-calculate the K and V vectors for all 100 preceding tokens, which is a massive waste of computation.

• The original computational cost for generating a sequence grows quadratically ($O(N^2)$) with the sequence length ($N$), making long-form generation prohibitively slow.

How Caching Causes Growth¶

• With the KV Cache: When the model generates a new token, it calculates its K and V vectors only once and then stores (caches) them in the Device’s VRAM.

• To generate the next token, the model simply retrieves all the previously cached K and V pairs and concatenates the new K and V pairs to the existing cache.

• Crucially, the model needs to store the K and V pairs for every single token in the sequence (both the input prompt and the generated output) to accurately compute the attention for the next token.

• Because a new set of K and V vectors is added for every new token, the total size of the cache grows linearly ($O(N)$) with the length of the conversation (sequence length, $N$).

The VRAM Bottleneck¶

The issue arises because VRAM is a finite, expensive resource.

• The KV Cache must be stored in VRAM (high-speed GPU memory) to ensure the model can access the data quickly enough for real-time generation.

• The total memory consumed by the cache is proportional to:

  $$\text{Cache Size} \propto \text{Number of Layers} \times \text{Sequence Length} \times \text{Head Dimension}^2$$

  (5)

• As the diagram illustrates:

  1. Initial Phase (e.g., 0 to 4000 tokens): The cache size is manageable, and the model maintains high TPS (25 to 20 TPS).

  2. Memory Pressure (e.g., 4500 tokens): As the cache consumes more VRAM, the system approaches the memory limit. This triggers aggressive memory management, often requiring the GPU to move data around, which is slower, leading to a drop in TPS (20 to 10 TPS).

  3. VRAM Saturation (e.g., 5000+ tokens): The Device runs out of VRAM. This can lead to swapping (moving data to slower Host RAM) or, in the worst case, stalls (where the Device is waiting for memory access) or crashes (if the system cannot handle the memory allocation requests), causing the TPS to plummet (10 to 3 TPS).

In short, the problem is a fundamental trade-off: the linear growth of the cache (essential for fast $O(N)$ generation) eventually clashes with the fixed limit of the Device’s VRAM (which is required for high-speed operation).

2.3 KV Cache Offloading: The Hybrid Solution¶

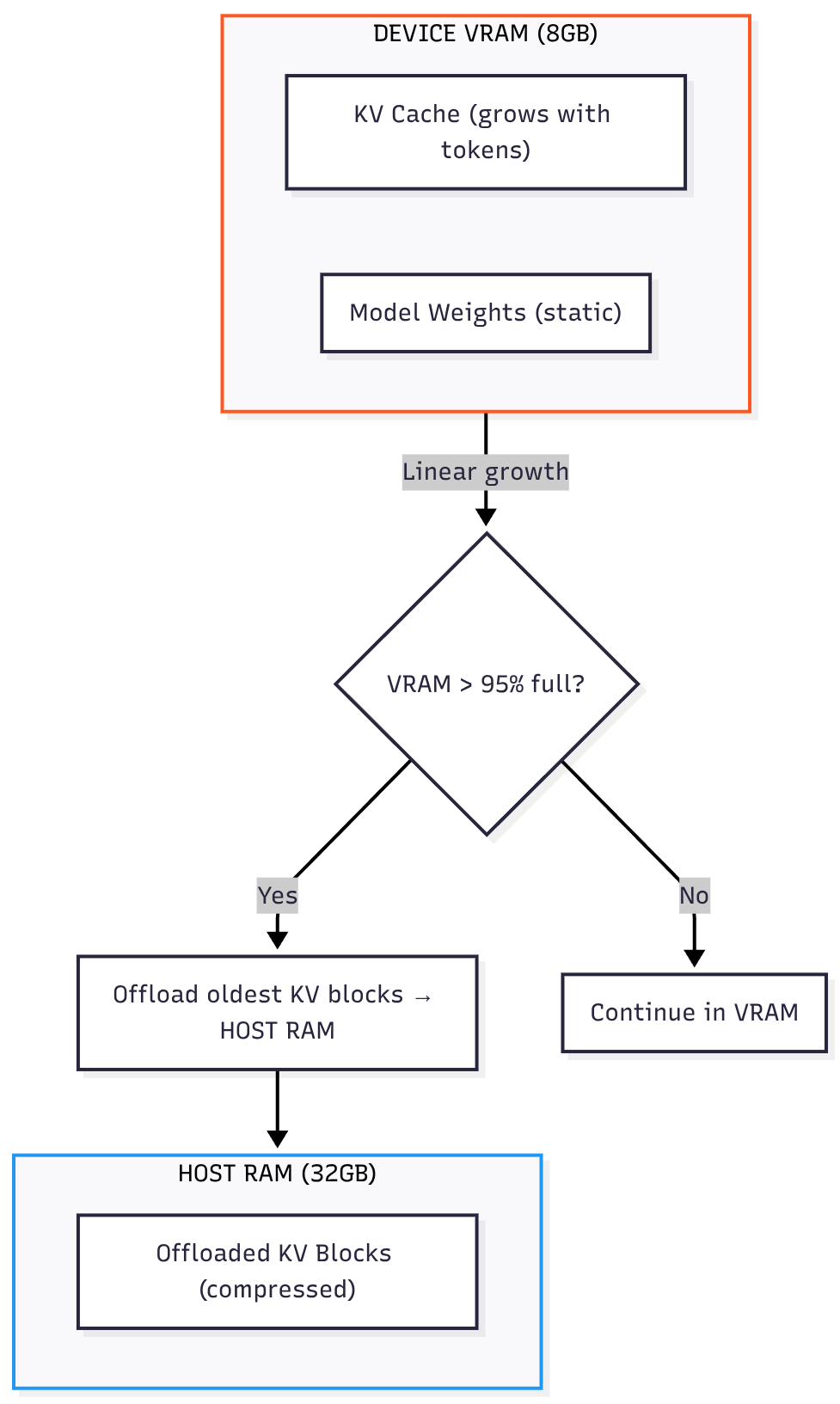

Hybrid execution frameworks like llama.cpp offload KV Cache blocks to Host RAM when VRAM fills.

• The Solution: Page older KV Cache parts from Device VRAM to Host RAM (32GB).

• Trade-off: Access latency increases due to PCI-E transfers causing $5\times - 10\times$ decrease in decoding speed (TPS).

Offloading Event Workflow:

When the Device needs an offloaded block (cache miss), the data must be retrieved from $\text{RAM}$, crossing the PCI-E Bus twice. This retrieval process adds significant latency.

(For a step-by-step visualization of this PCI-E Latency Hit, refer to the conditional block in the Complete LLM Inference Pipeline Diagram in Section 3.)

💡 Interactive Checkpoint: Logs show:

1. TTFT excellent ($0.5\text{s}$)

2. After 3 mins, TPS drops from 20 to 3.
   Can you identify the cause? (Answer at the end.)

3. Complete LLM Inference Pipeline Diagram¶

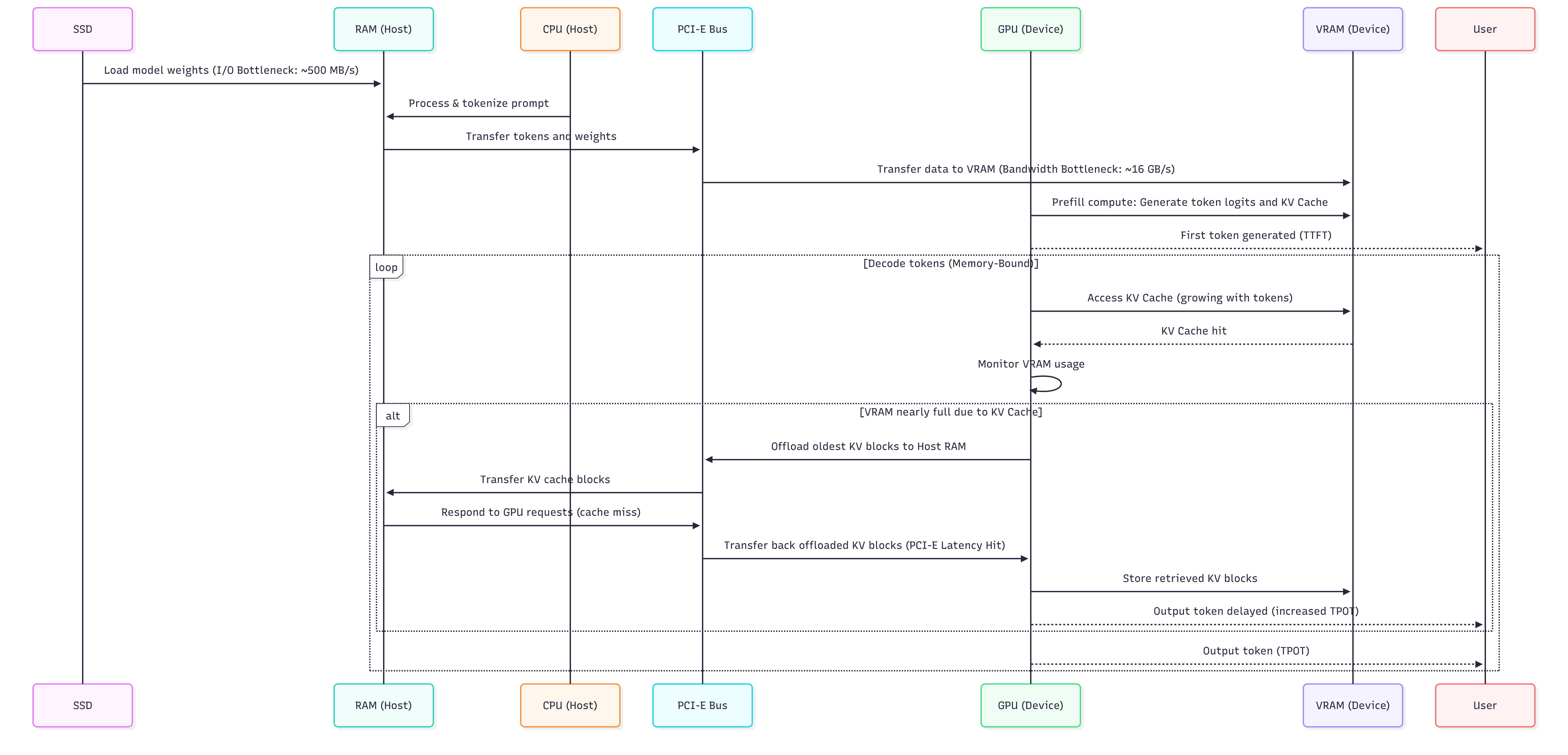

This sequence diagram illustrates the complete process of Large Language Model (LLM) inference on a single-GPU system, from model loading to iterative token generation, explicitly highlighting critical performance bottlenecks and the hybrid execution logic.

This structured analysis serves as the key to the diagram, explicitly linking each stage of the pipeline to its governing performance metric, hardware driver, and primary bottleneck.

4. Frameworks: The Hybrid Execution Engines¶

Real-world hybrid execution depends on inference kernels that optimize Host/Device coordination. Key players in 2025:

llama.cpp Hybrid Methods Explained

For local deployments, llama.cpp uses two distinct methods for hybrid execution:

1. KV Cache Offloading: The process of moving the conversation state (the growing KV Cache) from Device VRAM to Host RAM to extend the maximum context length beyond the Device’s memory limit. This primarily manages memory capacity.

2. Layer Splitting: The most effective hybrid technique for load balancing, which assigns the computation for the model’s lower layers (compute-heavy) to the Device (GPU), while the upper layers (memory-intensive) are strategically placed on the Host (CPU) (using Host RAM). This manages computational load and Device VRAM capacity simultaneously.

💡 Battle-Tested Insight:

For local deployments (our scenario), llama.cpp is the only framework that reliably handles KV cache offloading on consumer Devices (GPUs). Its GGUF quantization support (Q4_K_M) and CUDA graph capture make it the de facto standard for sub-24GB Device VRAM setups.

5. Quantization: The Enabler for Local LLMs¶

Quantization is the process of reducing the precision of the model’s weights (e.g., from 16-bit to 4-bit integers), which dramatically cuts the model’s VRAM footprint and memory bandwidth requirement.

Trade-offs of Quantization¶

The Power of GGUF (Q4_K_M)¶

The llama.cpp framework’s GGUF format is the standard for local LLM quantization. The Q4_K_M variant uses advanced techniques (like per-channel scaling and K-means clustering) to achieve high compression with minimal accuracy loss.

Engineering Mandate: Always deploy the highest practical quantization (e.g., Q4_K_M or Q5_K_M) before resorting to full KV Cache offloading, as quantization is a global speed optimization, whereas offloading is a localized latency penalty.

Key Takeaways for the AI Engineer¶

1. TTFT vs. TPOT: TTFT is CPU/SSD latency; TPOT is GPU/VRAM bandwidth.

2. Bandwidth over FLOPs: Decode speed depends more on memory bandwidth than raw compute.

3. Quantization First: Use GGUF to reduce memory footprint and boost effective VRAM bandwidth.

4. Hybrid Execution is Necessary: Must configure KV Cache offloading (for context length) and/or Layer Splitting (for model fit) for large models or long contexts on consumer hardware.

✅ Checkpoint Answer: TTFT confirms Prefill ran well. TPS drop signals KV Cache Offloading is active, with slow PCI-E reads causing up to $10\times$ latency.

Appendix A: Deep Dive on Compute vs. Bandwidth¶

GPU FLOPS Decoded: Theoretical Peak vs. Real World

FLOPS (Floating Point Operations Per Second) measures a GPU’s theoretical peak compute throughput for matrix math. However, LLM inference rarely saturates FLOPS due to memory constraints.

⚠️ Critical Reality Check:

In actual LLM workloads:

• VRAM bandwidth (not FLOPS) limits speed 95% of the time.

• FLOPS utilization rarely exceeds $30\% - 40\%$ due to memory stalls.

• Quantized models (INT4) further reduce FLOPS utilization by $60\% - 70\%$ because the integer operations bypass the high-speed floating-point units.

💡 When FLOPS Actually Matters:

Only when all these conditions are met:

1. Weights fully pre-loaded in VRAM (no PCI-E transfers during prefill).

2. Prompt length $> 1,024$ tokens (sufficient parallelism).

3. Using FP16/BF16 precision (no quantization).

4. Optimized kernels (e.g., FlashAttention-2).

Example: The RTX 4090 ($83 \text{ TFLOPS } \text{FP}16$)

The $83 \text{ TFLOPS}$ FP16 rating for an RTX 4090 is a peak theoretical number, useful for comparing raw potential—but not a predictor of LLM inference speed in real deployments. This number is achievable only under ideal conditions (dense matrices, perfect memory access) that modern LLM workloads (sparse, memory-bound attention layers) rarely meet.

Real-world LLM inference on an RTX 4090 typically achieves $< 25 \text{ TFLOPS}$ effective throughput—often much lower during decode due to memory-bound behavior.

Key Takeaway: The Prefill phase is memory-bound (VRAM bandwidth), not compute-bound. Optimizing TTFT requires maximizing VRAM bandwidth utilization and ensuring weights are pre-loaded.

Appendix B. Static Diagrams¶

1. Complete LLM Inference Pipeline Diagram¶

2. KV Cache Growth & Offload Trigger Diagram¶

3. Memory Pressure Timeline¶
